ราคา 98,000 บาท
Model : M6DAC

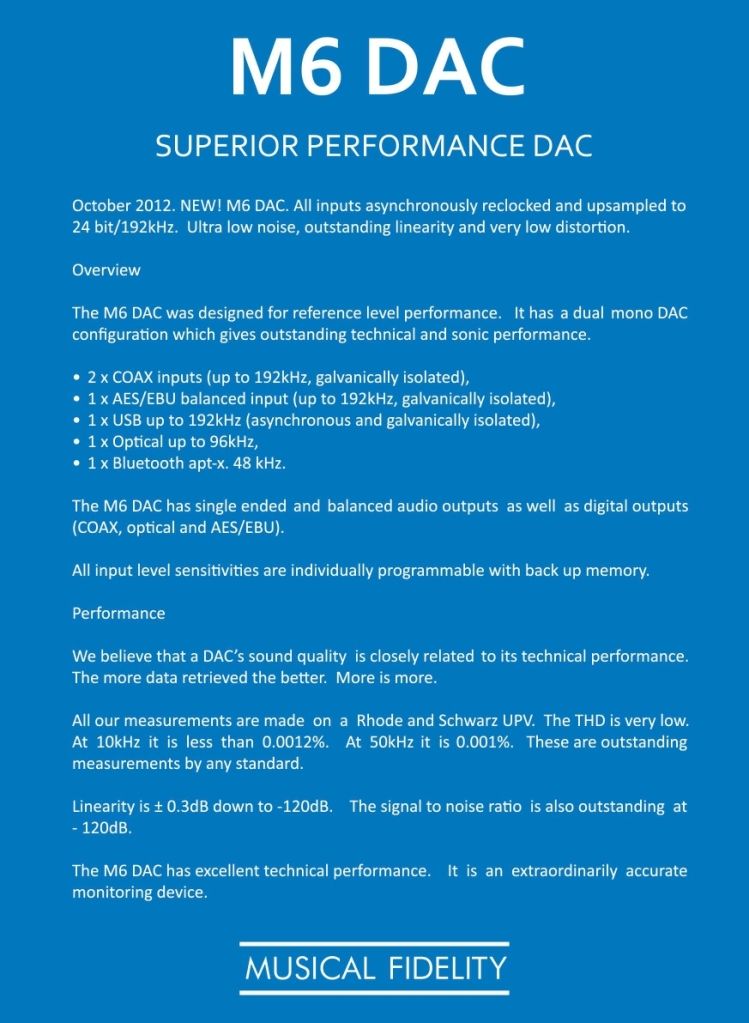

Overview
The M6 DAC was designed for reference level performance. It has a dual mono DAC configuration which gives outstanding technical and sonic performance.
2 x COAX inputs (up to 192kHz, galvanically isolated),
1 x AES/EBU balanced input (up to 192kHz, galvanically isolated),
1 x USB up to 192kHz (asynchronous and galvanically isolated),
1 x Optical up to 96kHz,
1 x Bluetooth apt-x. 48 kHz.
The M6 DAC has single ended and balanced audio outputs as well as digital outputs (COAX, optical and AES/EBU).
All input level sensitivities are individually programmable with back up memory.
Performance
We believe that a DACs sound quality is closely related to its technical performance. The more data retrieved the better. More is more.
All our measurements are made on a Rhode and Schwarz UPV. The THD is very low. At 10kHz it is less than 0.0012%. At 50kHz it is 0.001%. These are outstanding measurements by any standard.
Linearity is ± 0.3dB down to -120dB. The signal to noise ratio is also outstanding at
- 120dB.
The M6 DAC has excellent technical performance. It is an extraordinarily accurate monitoring device.

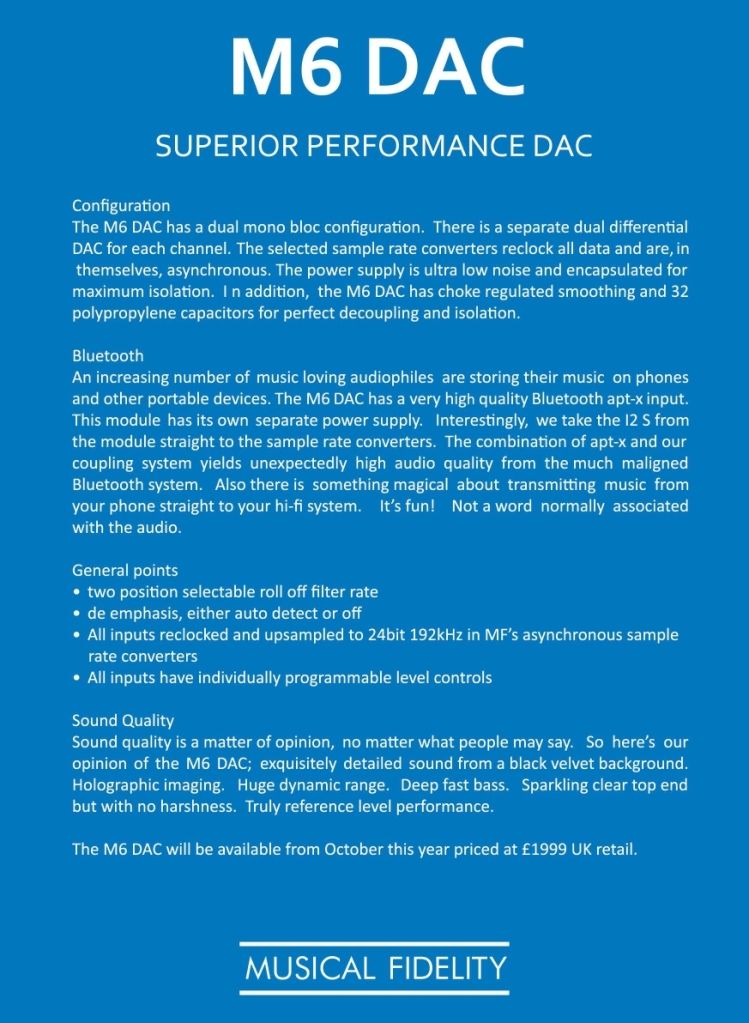

Configuration
The M6 DAC has a dual mono bloc configuration. There is a separate dual differential DAC for each channel. The selected sample rate converters reclock all data and are, in themselves, asynchronous. The power supply is ultra low noise and encapsulated for maximum isolation. In addition, the M6 DAC has choke regulated smoothing and 32 polypropylene capacitors for perfect decoupling and isolation.
Bluetooth
An increasing number of music loving audiophiles are storing their music on phones and other portable devices. The M6 DAC has a very high quality Bluetooth apt-x input. This module has its own separate power supply. Interestingly, we take the I2 S from the module straight to the sample rate converters. The combination of apt-x and our coupling system yields unexpectedly high audio quality from the much maligned Bluetooth system. Also there is something magical about transmitting music from your phone straight to your hi-fi system. Its fun! Not a word normally associated with the audio.
General points
two position selectable roll off filter rate
de emphasis, either auto detect or off
All inputs reclocked and upsampled to 24bit 192kHz in MFs asynchronous sample rate converters
All inputs have individually programmable level controls
Sound Quality
Sound quality is a matter of opinion, no matter what people may say. So heres our opinion of the M6 DAC; exquisitely detailed sound from a black velvet background. Holographic imaging. Huge dynamic range. Deep fast bass. Sparkling clear top end but with no harshness. Truly reference level performance.
